Description
Overview

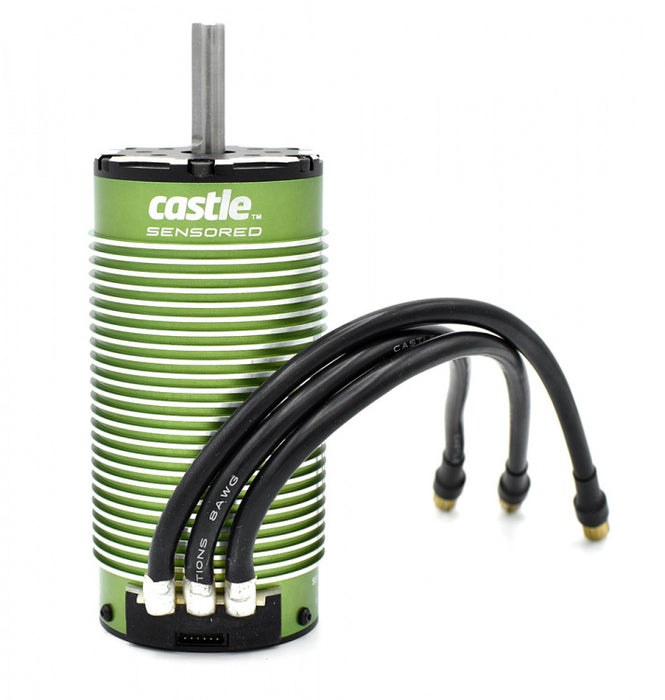

The Castle Creations 2028-1100KV Sensored Brushless Motor (CC060-0087-00) is a very powerful 4-pole, 12-slot sensored brushless motor, developed for large 1/5 and 1/6 scale RC vehicles. The motor has a 1100KV winding, a maximum speed of 45,000 RPM and supports up to 10S LiPo. Thanks to its efficient motor construction, high-quality magnets, Kevlar-reinforced rotor and large NMB bearings, it is designed for sustained loads and vehicles weighing up to 30 lb / 13.6 kg. The motor supports both sensored and sensorless operation and uses 250 mm sensor cables with two sensor ports for flexible installation.
Features
- 4-pole, 12-slot brushless design
- 1100KV
- Maximum 45,000 RPM
- Supports up to 10S LiPo
- Suitable for large 1/5 and 1/6 scale RC vehicles
- Designed for vehicles weighing up to 30 lb / 13.6 kg
- Sensored and sensorless operating modes
- SMARTSENSE™ support when used with a compatible Castle sensored ESC
- Highly efficient motor construction with low electrical resistance
- High-quality, heat-resistant neodymium magnets
- Kevlar-wrapped rotor
- Large NMB bearings
- Vibration-damping system for extended bearing life
- Two sensor ports for flexible installation
- Water-resistant motor design
- Silicone conformal coating on the sensor board
- 8 mm hardened motor shaft
- 8.0 mm Castle Bullet Connectors
- 250 mm sensor cable
- Optional cooling fan available, not included
- Recommended ESCs: Castle Mamba XL X and Mamba XLX2
- Suitable for sustained use in heavy large-scale models
| brand | Castle Creations |
| motor series | 2028 |
| motor type | Sensored brushless |
| motor construction | Inrunner |
| application | 1/5 and 1/6 scale RC vehicles |
| KV rating | 1100KV |
| number of poles | 4 |
| number of slots | 12 |
| maximum input voltage | 10S LiPo |
| maximum speed | 45,000 RPM |
| length | 112.7 mm |
| diameter | 56.3 mm |
| weight including cables | 1.25 kg |
| shaft diameter | 8 mm |
| shaft length | 30 mm |
| mounting | 4 mm on a 30 mm pitch |
| motor connectors | 8.0 mm male connectors |
| sensor cable | 250 mm |
| sensor ports | 2 |
| operating modes | Sensored / Sensorless |
| cooling | Optional cooling fan |
| water resistance | Water-resistant |
| maximum recommended vehicle weight | 30 lb / 13.6 kg |
| recommended ESC | Mamba XL X / Mamba XLX2 |
