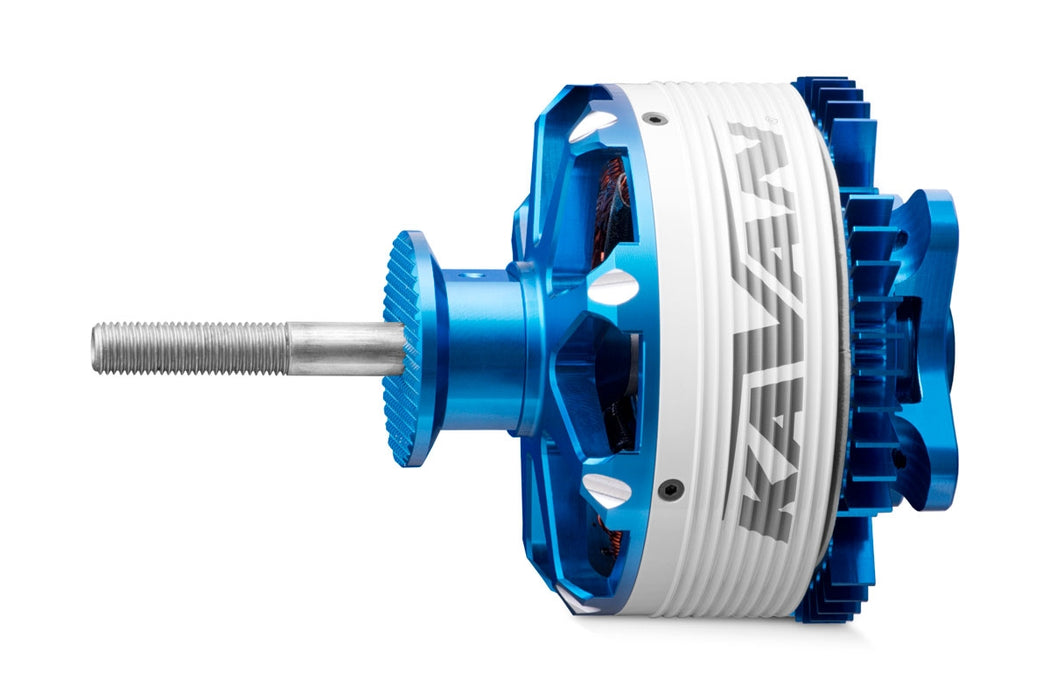

Kavan PRO 8050-195 195Kv Brushless Outrunner Motor
by Kavan
Original price
€275,99
-
Original price
€275,99
Original price
€275,99
€275,99
-
€275,99
Current price
€275,99
free return
Do you live in Belgium or The Netherlands? Then you can return your package for free!
Low stock at supplier
Description
Overview
The KAVAN PRO 8050-195 (KAV30.2036) is a powerful 22-pole brushless outrunner motor for large RC aircraft. Suitable for 10–12S LiPo batteries, with 4400 W peak power (30 sec.) and 195KV. The motor is suitable for gliders up to 12 kg, trainers up to 9 kg, aerobatic models up to 6.5 kg, and 3D models up to 5.2 kg. Thanks to its high torque at low RPM, it can drive large propellers directly without a gearbox and is particularly suitable as an electric power system for scale and aerobatic models traditionally powered by approximately 35cc two-stroke petrol engines.
| LiXX cell supply | 10 - 12 |
| KV rating [omw./min/V] | 195 |
| Maximum power (30 s) [W] | 4400 |
| Internal resistance [mΩ] | 18 |
| No-load current (at 10 V) [A] | 1,5 |
| Maximum peak current (30 s) [A] | 120 |
| Diameter [mm] | 79,5 |
| Length [mm] | 50 |
| Total length [mm] | 129,5 |
| Shaft diameter [mm] | 8 |
| Weight [g] | 740 |
| Number of poles | 22 |
| Timing [°] | 15 - 25 |
| Recommended ESC [A] | 120 - 160 |
| Max. glider weight [g] | 12000 |
| Max. trainer weight [g] | 9000 |
| Max. aerobatic model weight [g] | 6500 |
| Max. 3D model weight [g] | 5200 |
| Recommended propeller (12S) | 20x9”–21x10” |
