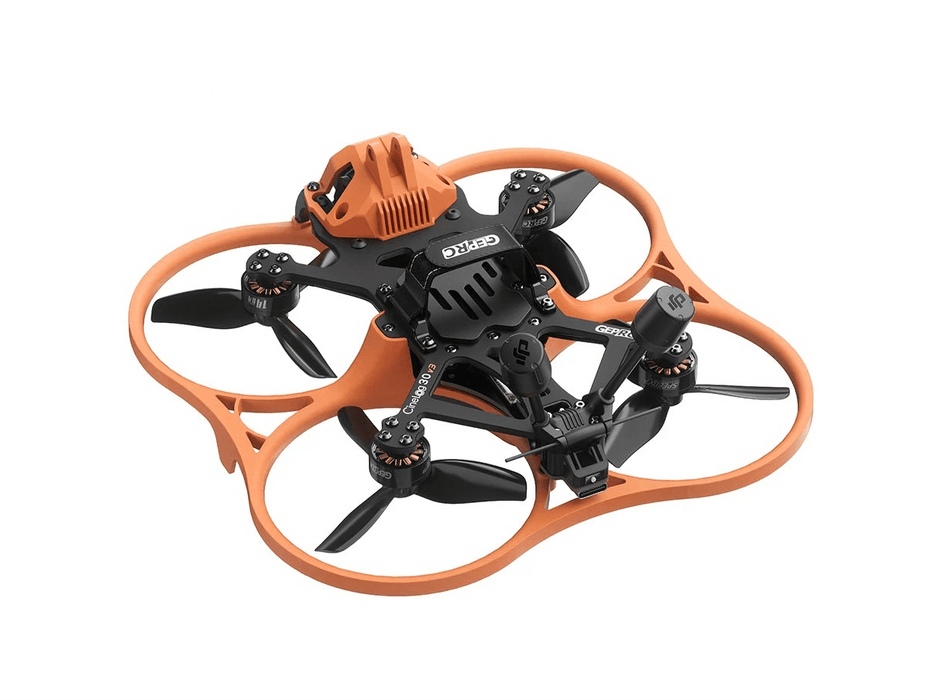

GEPRC Cinelog30 V3 O4 Air Unit PRO Freestyle FPV Drone BNF
free return
Do you live in Belgium or The Netherlands? Then you can return your package for free!
Description
BNF
The Cinelog30 V3 O4 Air Unit is supplied without transmitter and batteries, while the WTFPV version does not include transmitter, VTX, camera, and antennas for the drone.
Overview
The Cinelog30 V3 is equipped with the O4 Air Unit PRO VTX, which, thanks to the advanced processor, provides exceptional image quality, color accuracy, and detail. The reinforced aluminum frame and the enveloping electronic compartment offer increased durability and protection for internal components, with dustproof connectors and a cover for extra protection. The rear-mounted PDB ensures tidy wiring and a streamlined layout. Powered by a TAKER F722 45A 32-bit AIO, 1404 3850KV motors, HQprop DT76mm x3 props, and a LiHV 4S 720mAh battery, it delivers a flight time of up to 8 minutes and 10 seconds. The Cinelog30 V3 is optimized for stable, cinematic footage, making it ideal for professional aerial videography.
Features
- Equipped with the latest O4 Air Unit PRO, offering sharp details, high resolution, and excellent low-light performance.
- Refined frame with an enveloping design for enhanced protection of electronic components.
- With aluminum reinforced front and protective frame for extra durability.
- Slim front to protect the lens of the O4 Air Unit PRO from impacts.
- Dustproof connectors for data ports to prevent dirt during takeoff and landing.
- Custom PDB with receiver, buzzer, LED BEC, TVS, and anti-spark features.
- Cinelog series under-mounted gimbal mount for stable, smooth footage with the O4 Air Unit PRO.
- Precisely tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control.
Cinelog30 V3 O4 Pro
| Model | Cinelog30 V3 O4 Pro Quadcopter |
| Frame Model | GEP-CL30 V3 |
| Carbon Plate Thickness | 2.5mm |
| Wheelbase | 128mm |
| Flight Controller | TAKER F722 45A 32Bit AIO |
| MCU | STM32F722RET6 |
| Gyro | ICM 42688-P |
| FC Firmware | GEPRC_F722_AIO |
| Flash | 16MB |
| ESC | 32Bit 45A |
| Engine | SPEEDX2 1404 3850KV |
| Propeller | HQprop DT76mmx3 V2 |
| Battery connector | XT30 |
| VTX | O4 AIR Unit Pro |
| Camera | O4 |
| Antenna | O4 original |
| Receiver | PNP (built-in) / ELRS2.4G / TBS NanoRX |
| Weight (TBS NanoRX Version) | 187 ± 2g |
| Recommended Battery | LiHV 4S 660–720mAh |
| Flight time | 8 minutes 10 seconds (calm flying) |
Cinelog30 V3 WTFPV
| Model | Cinelog30 V3 WTFPV Quadcopter |
| Frame Model | GEP-CL30 V3 |
| Carbon Plate Thickness | 2.5mm |
| Wheelbase | 128mm |
| Flight Controller | TAKER F722 45A 32Bit AIO |
| MCU | STM32F722RET6 |
| Gyro | ICM 42688-P |
| FC Firmware | GEPRC_F722_AIO |
| Flash | 16MB |
| ESC | 32Bit 45A |
| Engine | SPEEDX2 1404 3850KV |
| Propeller | HQprop DT76mmx3 V2 |
| Battery connector | XT30 |
| VTX | None |
| Camera | None |
| Antenna | None |
| Receiver | PNP (digitally built-in) / ELRS2.4G / TBS NanoRX |
| Weight (TBS NanoRX Version) | 148 ± 2g |
| Recommended Battery | LiHV 4S 660–720mAh |

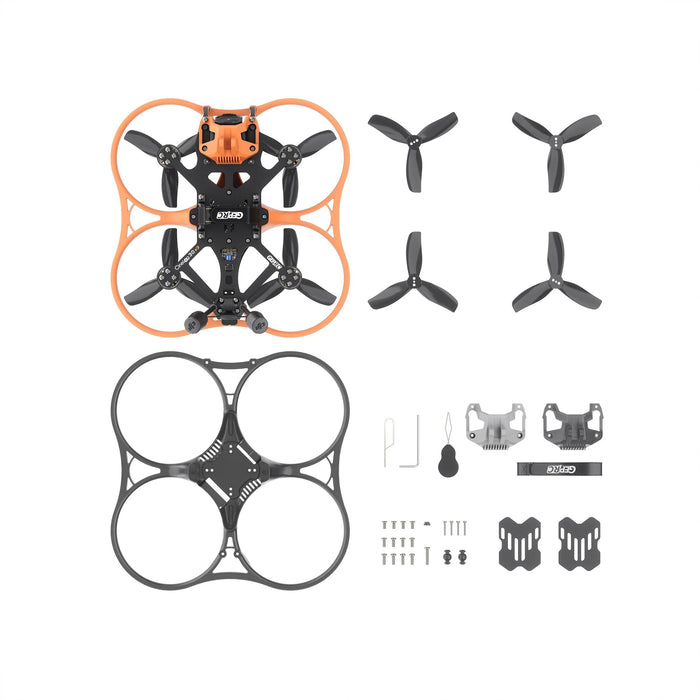

What is included
- 1 x Cinelog30 V3
- 1 x Protective Frame (transparent black)
- 2 x HQprop DT76mmx3 V2 (pair)
- 1 x 15*150mm Battery Strap
- 1 x L-shaped Screwdriver 1.5 mm
- 1 x Gray Cap
- 1 x Black Cap
- 1 x Spare Screw Set
- 1 x Anti-slip Battery Pad
- 1 x Damping Ball Puncher
- 1 x Ejector for Frequency Coupling
Spare screws included
- 1 x M2 blind rivet nut
- 4 x M2*4.5 button head screw with hex socket
- 4 x M2*6 button head screw with hex socket
- 4 x M2*4 button head screw with hex socket
- 1 x M2*12 button head screw
- 2 x damping ball
