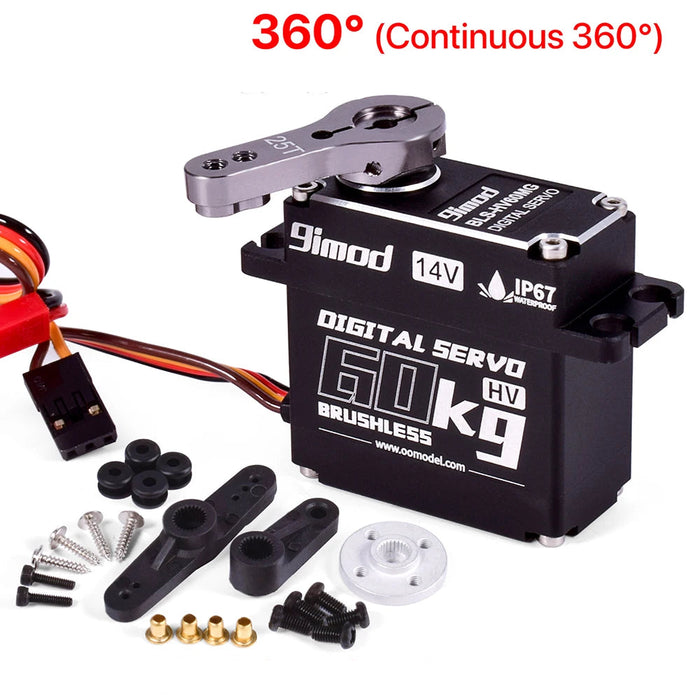

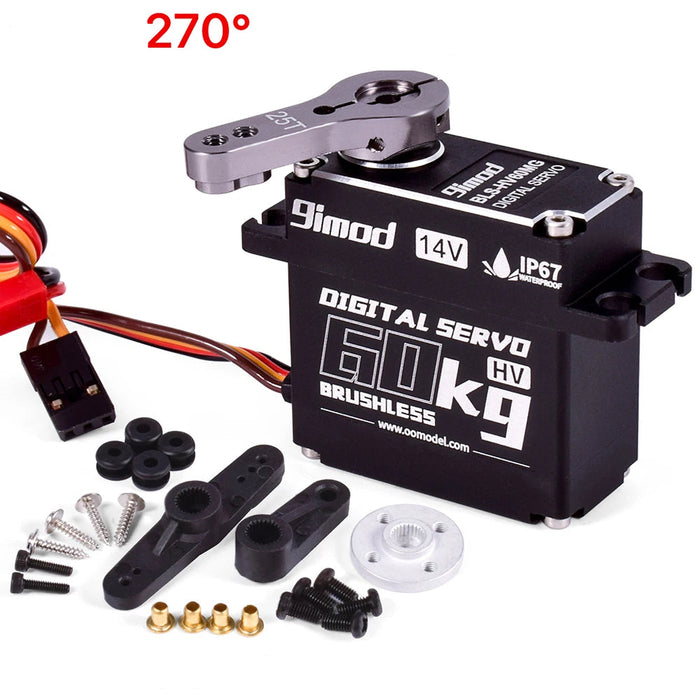

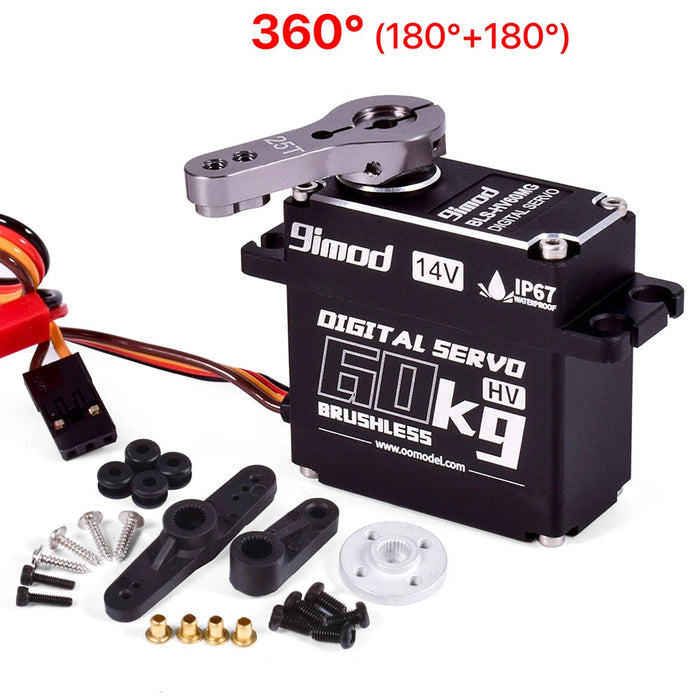

9imod 60KG Waterproof Digital Brushless Servo
by 9imod
Sold out
Original price
€0,00
-
Original price
€0,00
Original price
€0,00
€63,99
€63,99
-
€71,99
Current price
€63,99
free return
Do you live in Belgium or The Netherlands? Then you can return your package for free!
Out of stock
Out of stock
Out of stock
Out of stock
Description
| Model | BLS-HV50MG |
| Color | Black |
| Operating angle | 180° / 270° / 360° optional |
| Deadband | 1 µsec |
| Gear material | Metal |
| Housing material | Aluminum |
| Control system | PWM (1500µs center position) |
| Operating voltage | 10.0V ~ 15.0V |
| Operating temperature | -20°C ~ +60°C |
| Service life | > 100 million cycles without load |
| Operating range | 60° ± 1 |
| Angle limit | 180° ±1 / 270° ±1 / 360° ±1 |
| Speed & Torque | 0.15s/60°, 48kg·cm @ 10.0V0.13s/60°, 55kg·cm @ 12V0.11s/60°, 60kg·cm @ 14V |
| Idle current | 300mA @ 10.0V400mA @ 12V450mA @ 14V |
| Operating current | 4000mA @ 10.0V4500mA @ 12V5500mA @ 14V |
| Dimensions (L × W × H) | 40 × 20 × 40.5 mm |
| Weight | 83g (without servo horn) |
