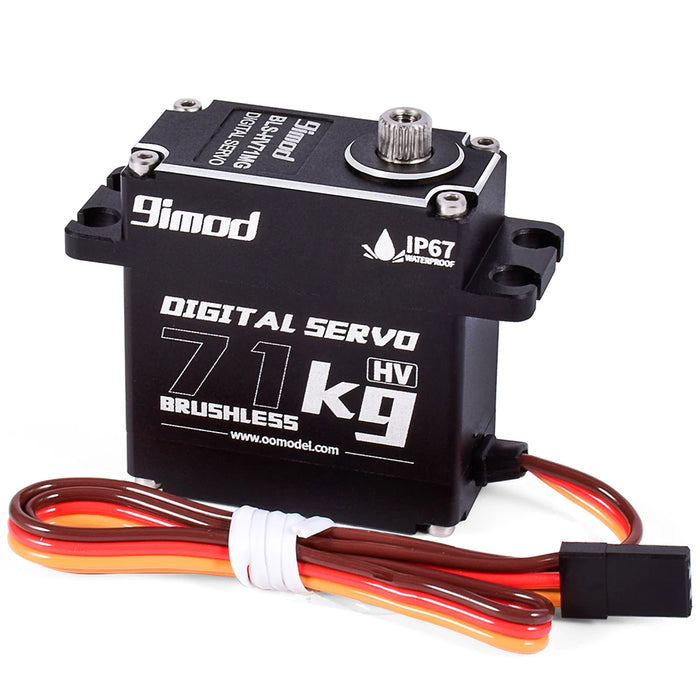

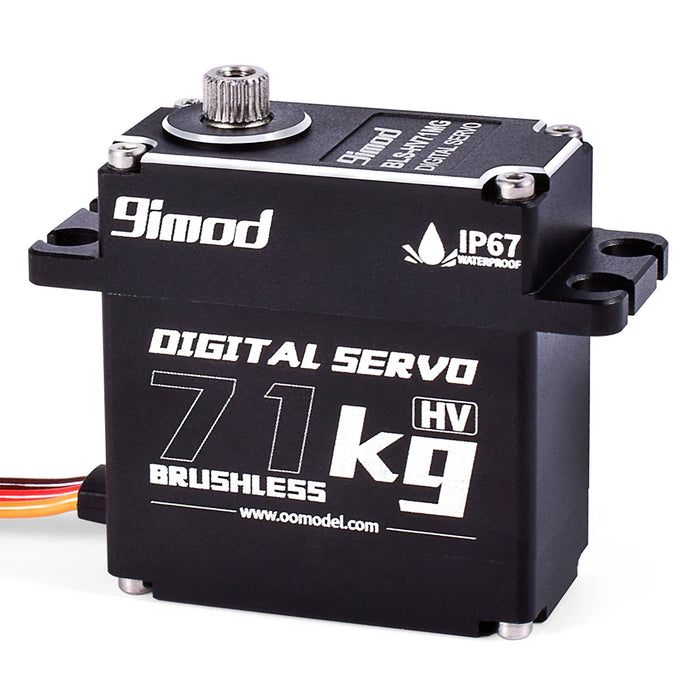

9iMOD 71KG High Torque Servo Brushless High Speed Servo
by 9imod
Original price
€0,00
-
Original price
€0,00
Original price
€0,00
€66,99
€66,99
-
€79,99
Current price
€66,99
free return
Do you live in Belgium or The Netherlands? Then you can return your package for free!
In stock at supplier
In stock at supplier
In stock at supplier
In stock at supplier
Description
| Model | BLS-HV71MG |
| Color | Black |

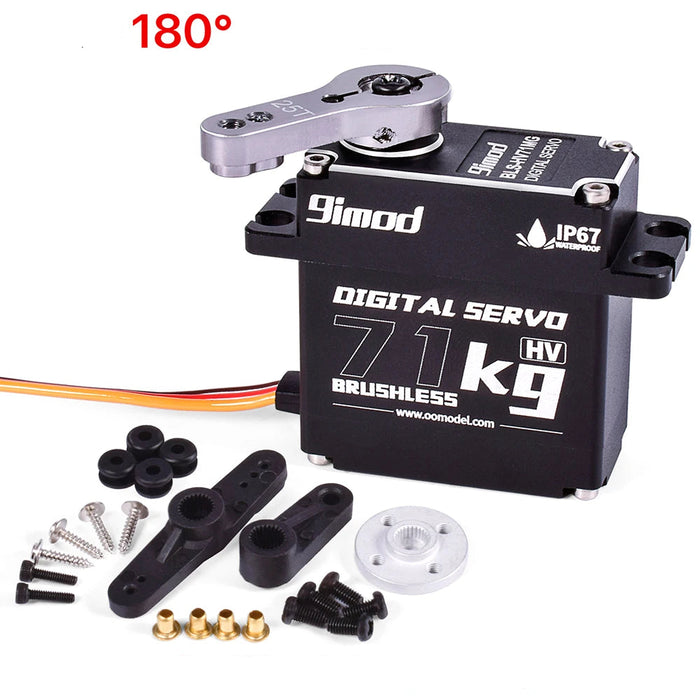

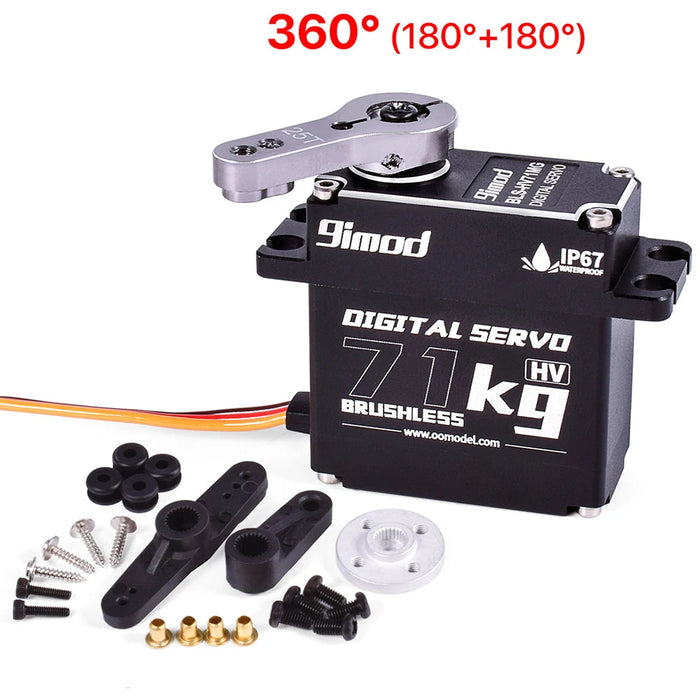

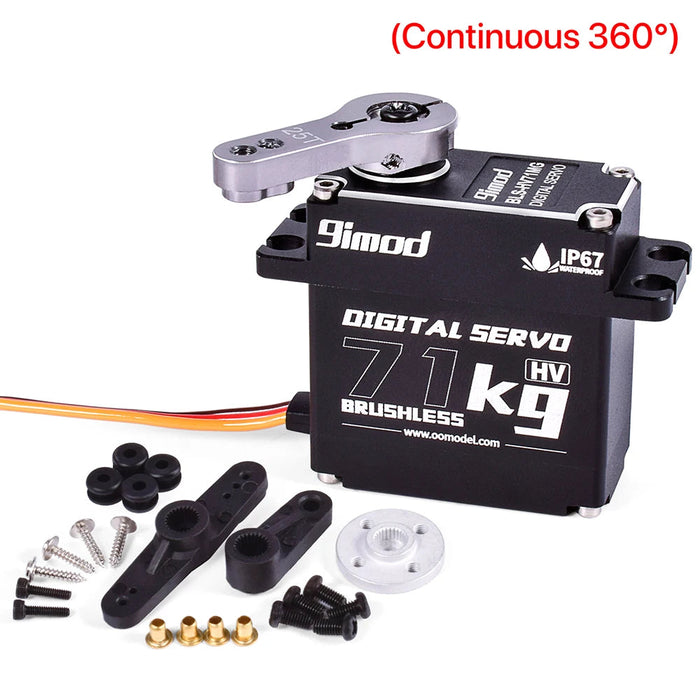

| Operating angle | 180° / 270° / 360° optional |
| Dead bandwidth | 1 µsec |

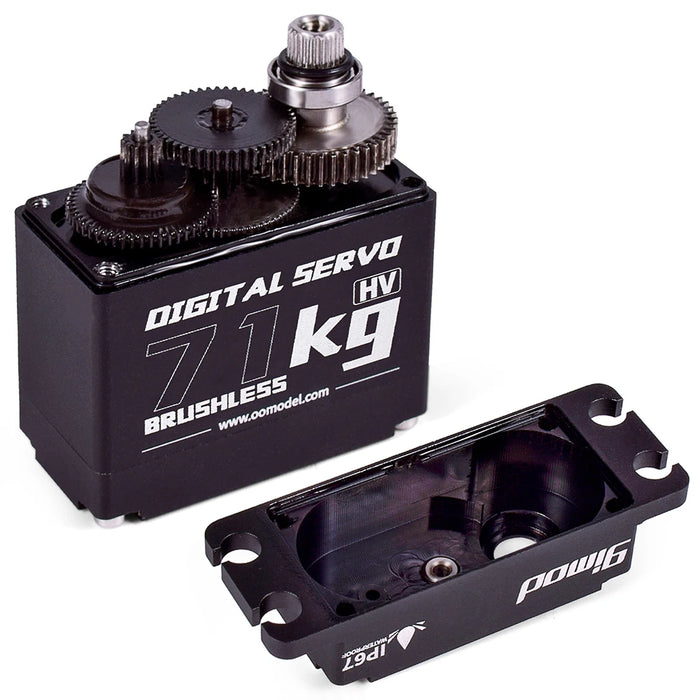

| Gear material | Metal |
| Housing material | Aluminum |
| Operating System | PWM (1500µs center position) |
| Operating voltage | 6.0V ~ 8.4V |
| Operating temperature | -20°C ~ +60°C |
| Lifespan | > 100 million cycles without load |
| Operating range | 60° ± 5 |
| Limit angle | 180° ±1 / 270° ±1 / 360° ±1 optional |
| Direction | Clockwise: Pulse width 500 → 2500µs |
| Driver type | MOS Drive |
| Motor type | Brushless |
| Potentiometer type | Direct Drive |
| Amplifier type | Digital control |

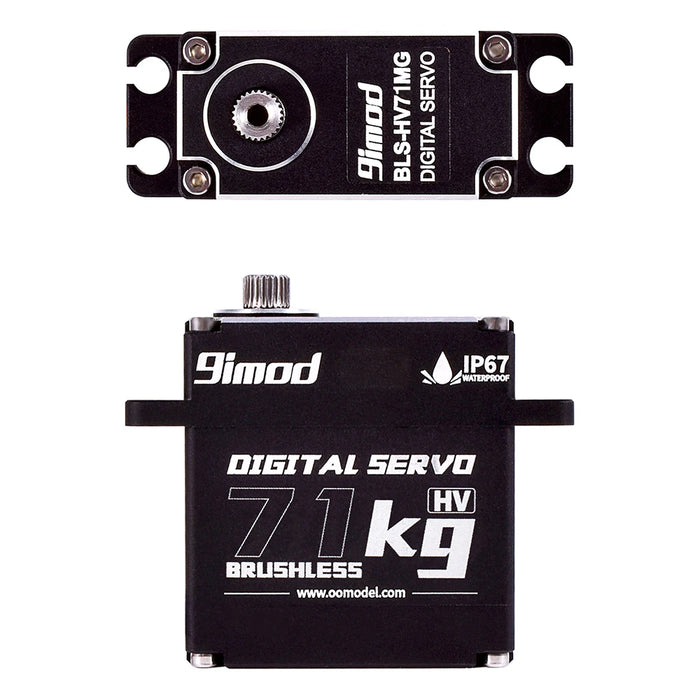

| Dimensions (LxWxH) | 40 × 20 × 42.5 mm |
| Weight | 81g (without servo horn) |
| Speed & Torque | 0.13s/60°, 53kg·cm @ 6.0V0.11s/60°, 67kg·cm @ 7.4V0.10s/60°, 71kg·cm @ 8.4V |
| Idle current | 450mA @ 6.0V500mA @ 7.4V600mA @ 8.4V |
| Operating current | 5000mA @ 6.0V7000mA @ 7.4V7500mA @ 8.4V |
| Ball bearings | 2BB |
| Cable length | 300 mm (JR Plug) |
| Wire thickness | 22 AWG |
| Wire color info | Brown: NegativeRed: PositiveBlack: NegativeYellow: Signal |
| Pulse width signals | 500–2500µs: 180°900–2100µs: 120°1000–2000µs: 90° |
