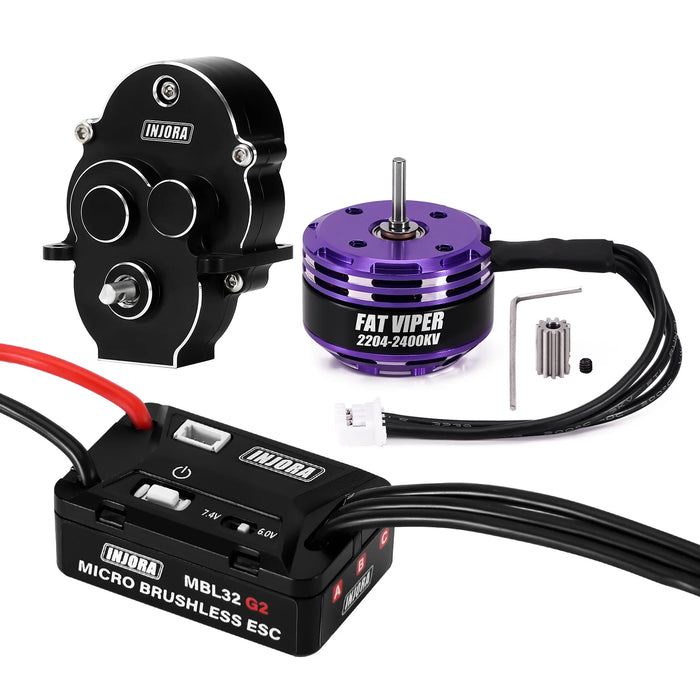

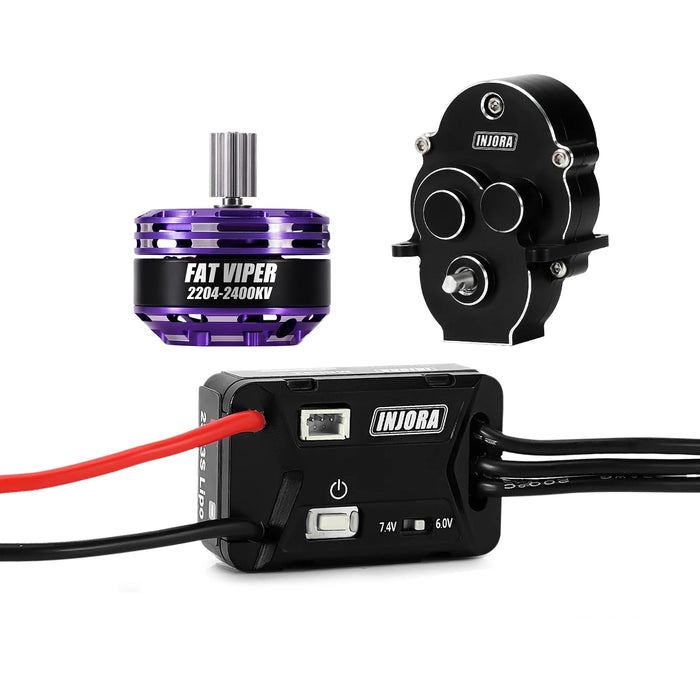

Injora MBL32 G2 ESC & 2204 Fat Viper Motor for Traxxas TRX-4M 1/18
by Injora
Sold out
Original price
€0,00
-
Original price
€0,00
Original price
€0,00
€111,99
€111,99
-
€111,99
Current price
€111,99
free return
Do you live in Belgium or The Netherlands? Then you can return your package for free!
Out of stock
Description
Features
- Based on AM32 firmware, the INJORA MBL32 G2 is carefully tuned for micro crawlers and is programmable.
- Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems and produces virtually no noise.
- The MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V.
- Waterproof design for performance in all weather conditions.
- Supports PC programming via a USB programming card. The factory settings are optimized for INJORA 1721/2204 motors. Adjustments are not recommended.
- Multiple protections: low-voltage, fail-safe, and rotor lock.
- The 2204 Fat Viper Outrunner motor delivers improved driving performance for your car.
| ESC | |
|---|---|
| Model | MBL32 G2 |
| LiPo Cells | 2–3S |
| Continuous Current | 25A |
| Peak Current | 60A |
| BEC Output | 6.0V / 7.4V adjustable |
| BEC Current | 3A |

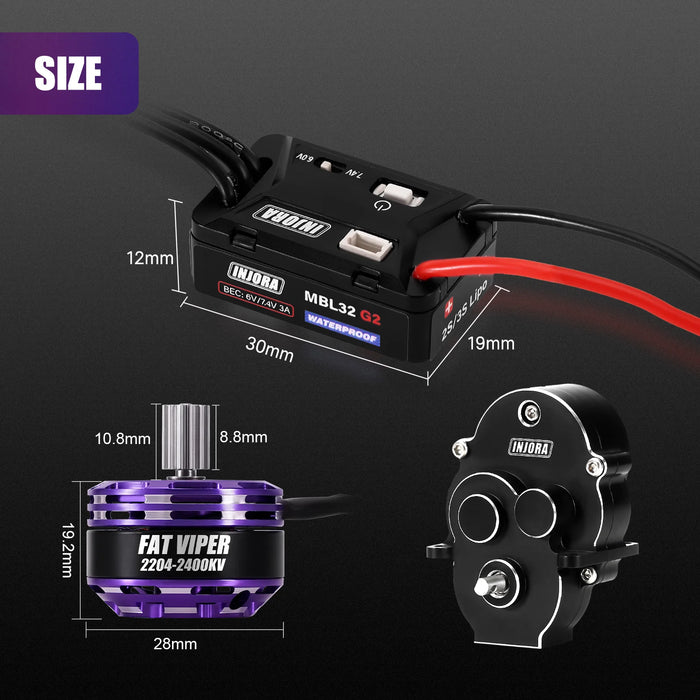

| Dimensions (LWH) | 30 × 19 × 12 mm |
| Waterproof | Yes |
| App Adjustment | Not Supported |
| Weight | 0.45 oz (13 g) |
| Motor | |
|---|---|
| Model | 2204 |
| Motor Type | Sensorless Brushless Outrunner |
| RPM/Volt | 2400KV |
| Motor Poles | 14 |
| Sine Mode Power | 7 |
| Maximum Power | 2500W |
| Current (No Load) | 0.7A |
| Maximum Peak Current | 50A |
| Motor Connectors | PH2.0 3-Pin |
| Dimensions | Φ28 × 19.2 mm |
| Motor Output Shaft | Φ2 mm |
| Motor Gear | 0.5mod 12T |
| Weight | 28 g |
| Motor Mounting | |
|---|---|
| Housing Material | Aluminum, Carbon Fiber |
| Gear Material | Stainless Steel |
| Internal Gears | 24.4:1 gear reduction, 32% underdrive |
