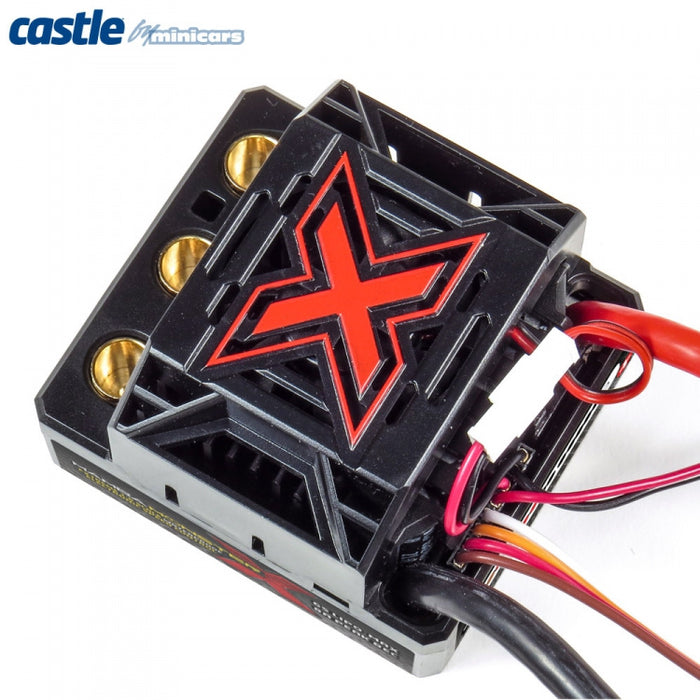

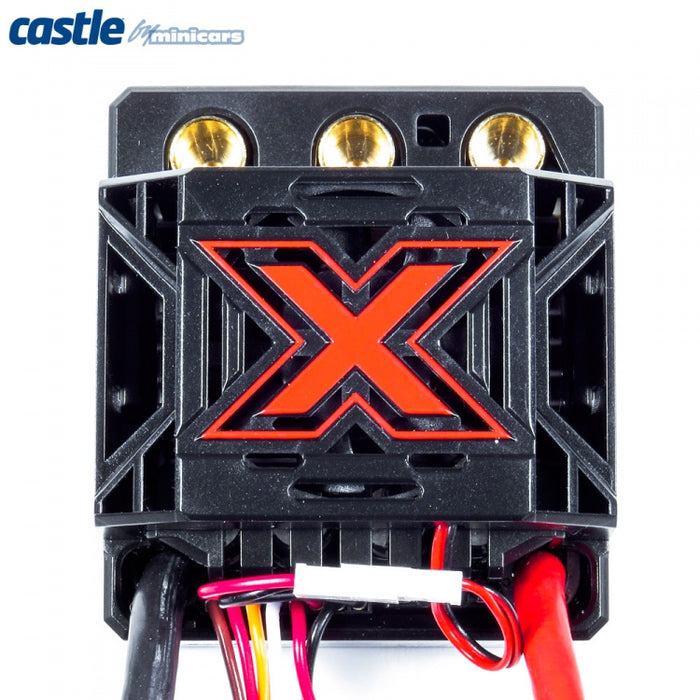

Castle Creations Mamba Monster X 25,2V Waterproof ESC 8A BEC

Overview

The Castle Creations Mamba Monster X (CC010-0145-00) is a powerful, waterproof 1/8-scale brushless ESC for buggies, truggies, on-road models, and 1/10 monster trucks, among others. The ESC supports 2S–6S LiPo up to 25.2V, features an adjustable 8A peak BEC, integrated data logging, telemetry, and a fully removable 30mm cooling fan. The Mamba Monster X is sensored-capable and offers extensive programming options via Castle Link.

Features

• Suitable for 1/8-scale models
• Suitable for 1/8 buggies, truggies, and on-road models
• Also suitable for 1/10 monster trucks
• Supports 2S–6S LiPo
• Maximum input voltage 25.2V
• Waterproof design
• Adjustable 8A peak BEC
• BEC adjustable to 5.5V, 6.0V, 7.5V, or 8.0V
• Factory BEC setting: 5.5V
• Integrated 30mm cooling fan
• Fan fully removable
• Data logging
• Telemetry-capable
• Auxiliary wire for, among other things, on-the-fly adjustments of maximum power and maximum brake
• Sensored-capable
• Proportional brake
• Reverse function, can be disabled for racing
• Programmable via the transmitter
• Fully programmable via Castle Link
• Firmware updates via Castle Link
• B-LINK compatible for wireless programming
• Audible warnings for calibration and fault conditions
• CRYO-DRIVE: no
• ROAR-certified ESC: no
• Recon G6-certified ESC: no
• Recommended for vehicles under 15 lb / 6.8kg with the 1515-2200KV V2
• Maximum 9 lb / 4.1kg recommended with a 1512-1800KV or 1512-2650KV motor
• Not recommended for very fast 1/8-scale and larger models such as the Arrma Infraction/Limitless and Traxxas XO-1.
